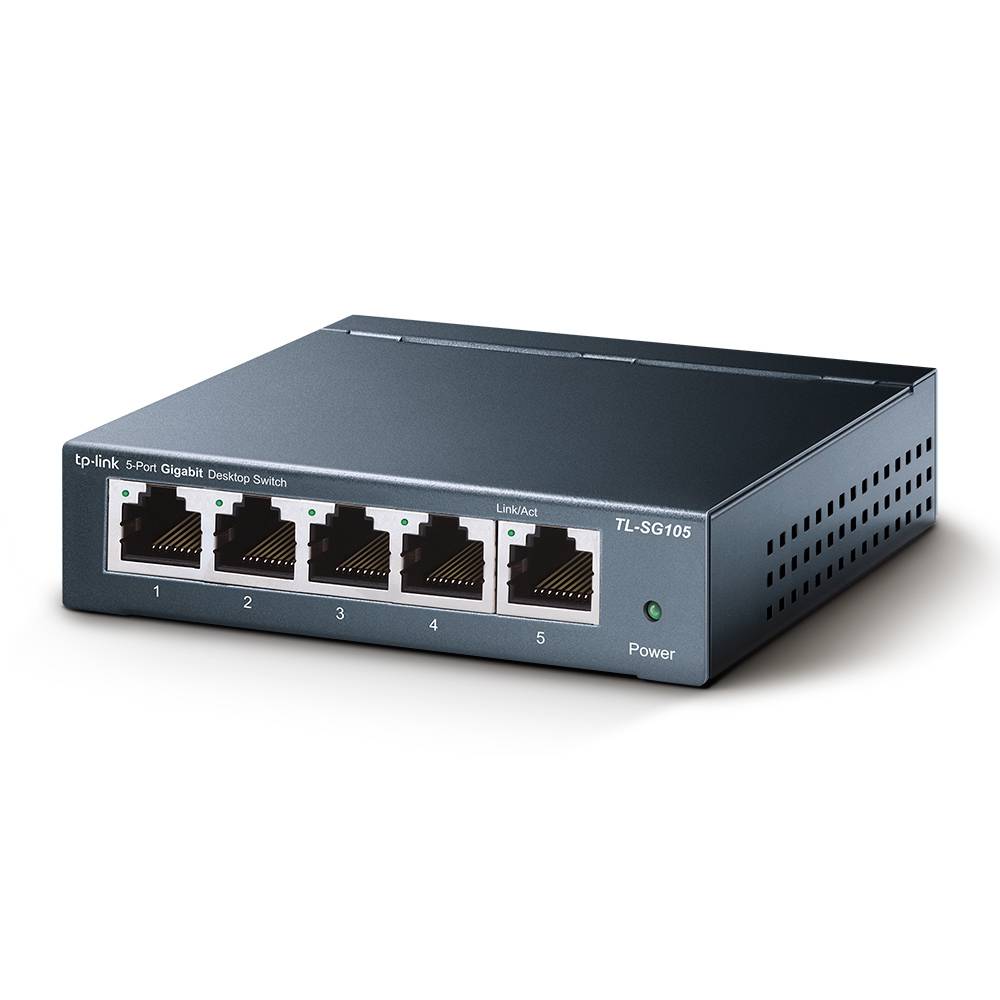

TP-Link TL-SG105 5-PORT DESKTOP GIGABIT SWITCH

Description



* HARDWARE FEATURES

Standards and Protocols
– IEEE 802.3i/802.3u/ 802.3ab/802.3x, IEEE 802.1p

Interface

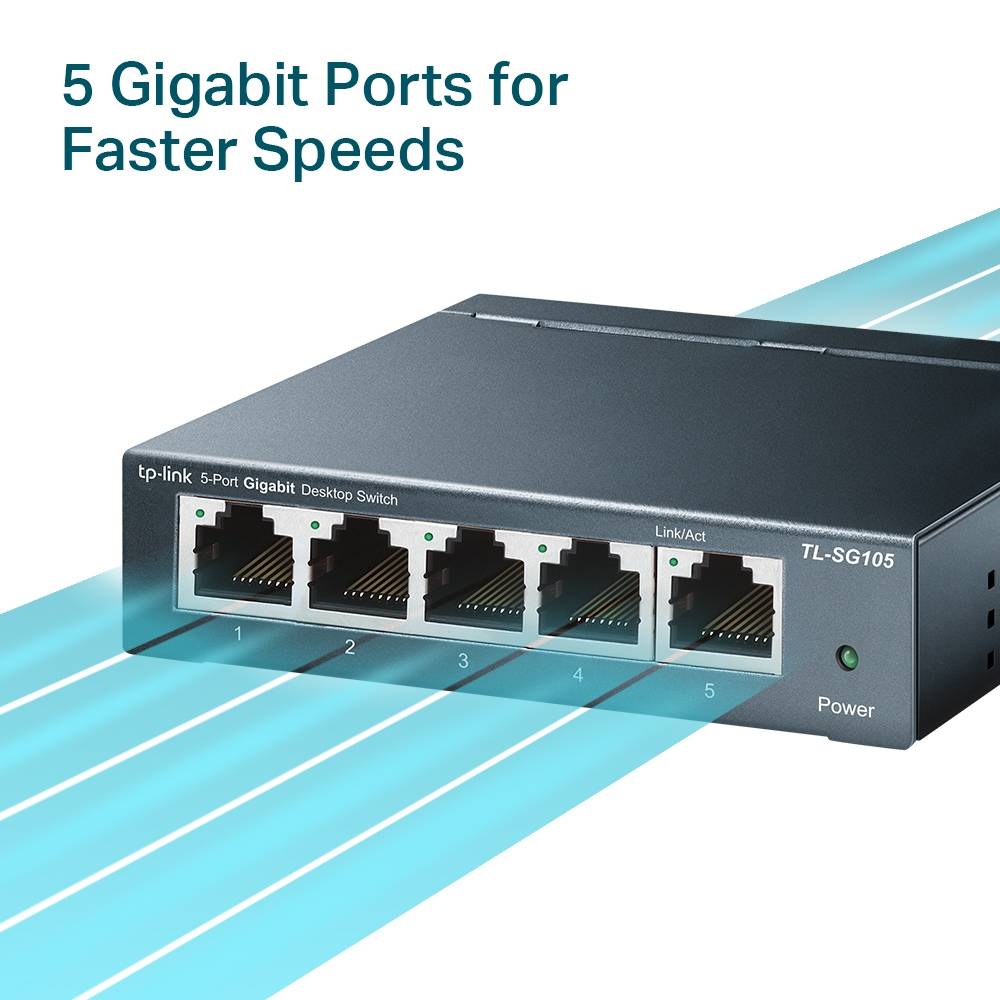

– 5× 10/100/1000 Mbps, Auto-Negotiation, Auto-MDI/MDIX Ports

Fan Quantity
– Fanless

External Power Supply
– External Power Adapter (Output: 5 V DC / 0.6A)

LED Indicator
– System Power
– Link/Act indicators per port built into each RJ-45 port

Dimensions ( W x D x H )
– 3.9 x 3.9 x 1.0 in (100 x 98 x 25 mm)

Max Power Consumption
– 2.3 W (220 V/ 50 Hz)

Max Heat Dissipation
– 7.83 BTU/h

* PERFORMANCE

Packet Forwarding Rate
– 7.4 Mpps

MAC Address Table
– 2K

Packet Buffer Memory
– 1 Mb

Jumbo Frame
– 16 KB

* SOFTWARE FEATURES

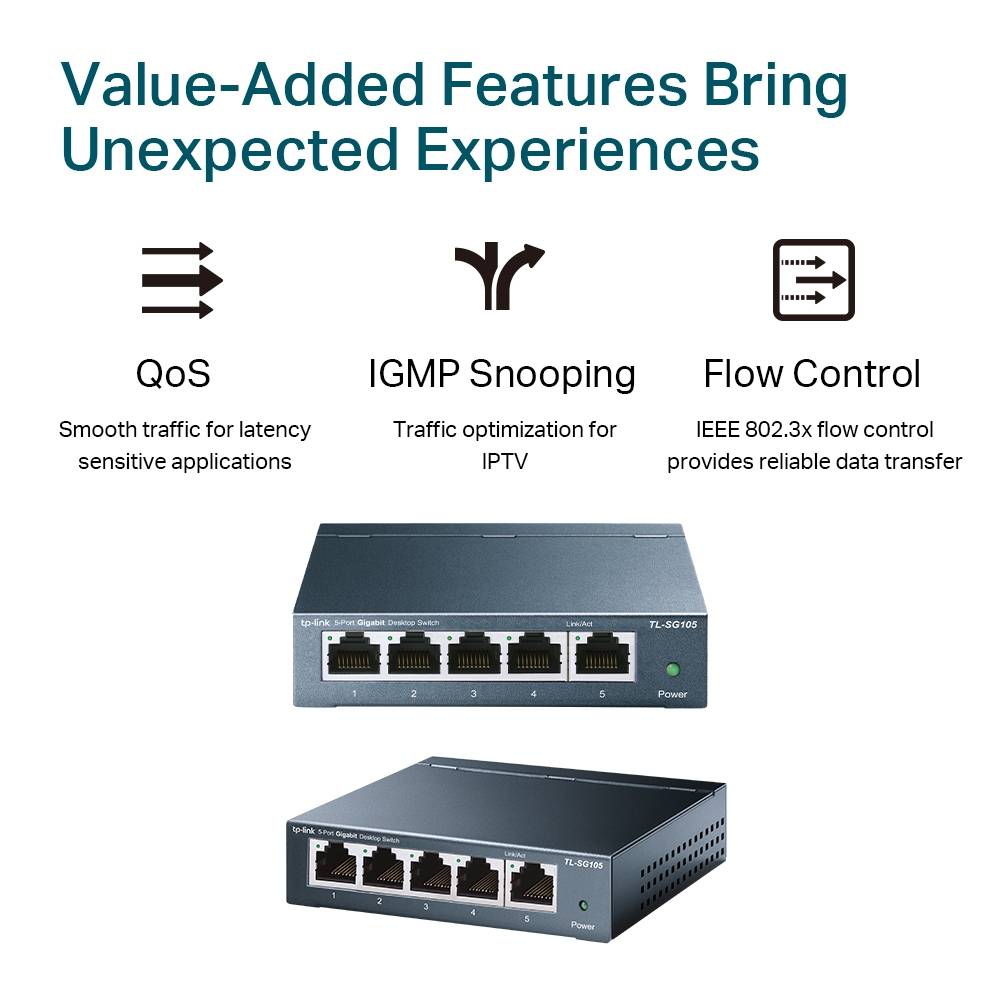

Advanced Features
– Green Technology
– 802.3X Flow Control
– 802.1P/DSCP QoS (for V2 and later version)
– IGMP Snooping

Transfer Method
– Store and Forward

* OTHERS

Certification
– CE, FCC, RoHS

Package Contents
– 5-Port 10/100/1000Mbps Desktop Switch
– Power Adapter
– Installation Guide

Environment
– Operating Temperature: 0–40 °C (32–104 °F)
– Storage Temperature: -40–70 °C (-40–158 °F)
– Operating Humidity: 10–90% RH non-condensing
– Storage Humidity: 5–90% RH non-condensing
